DIY C-Frame Press Kit

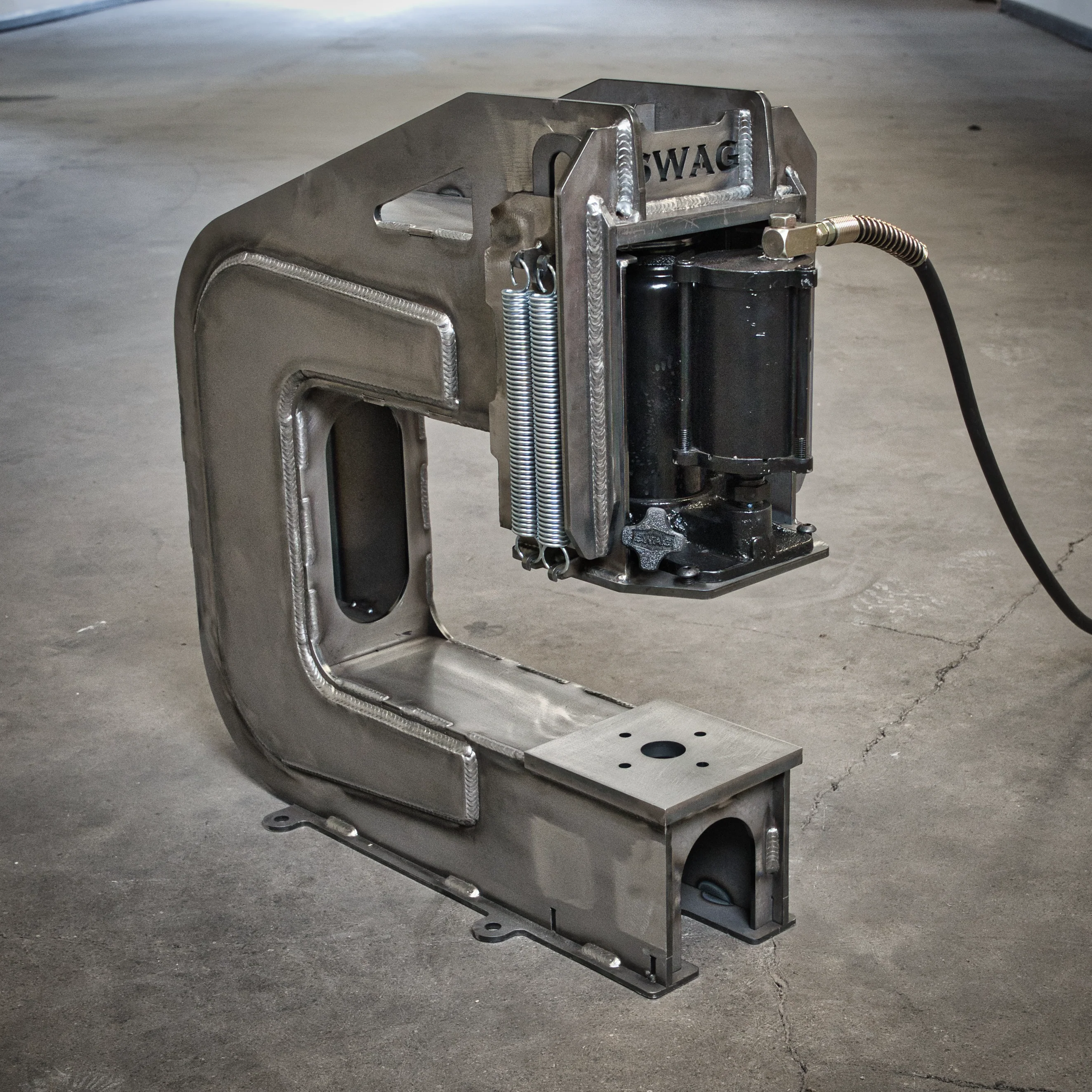

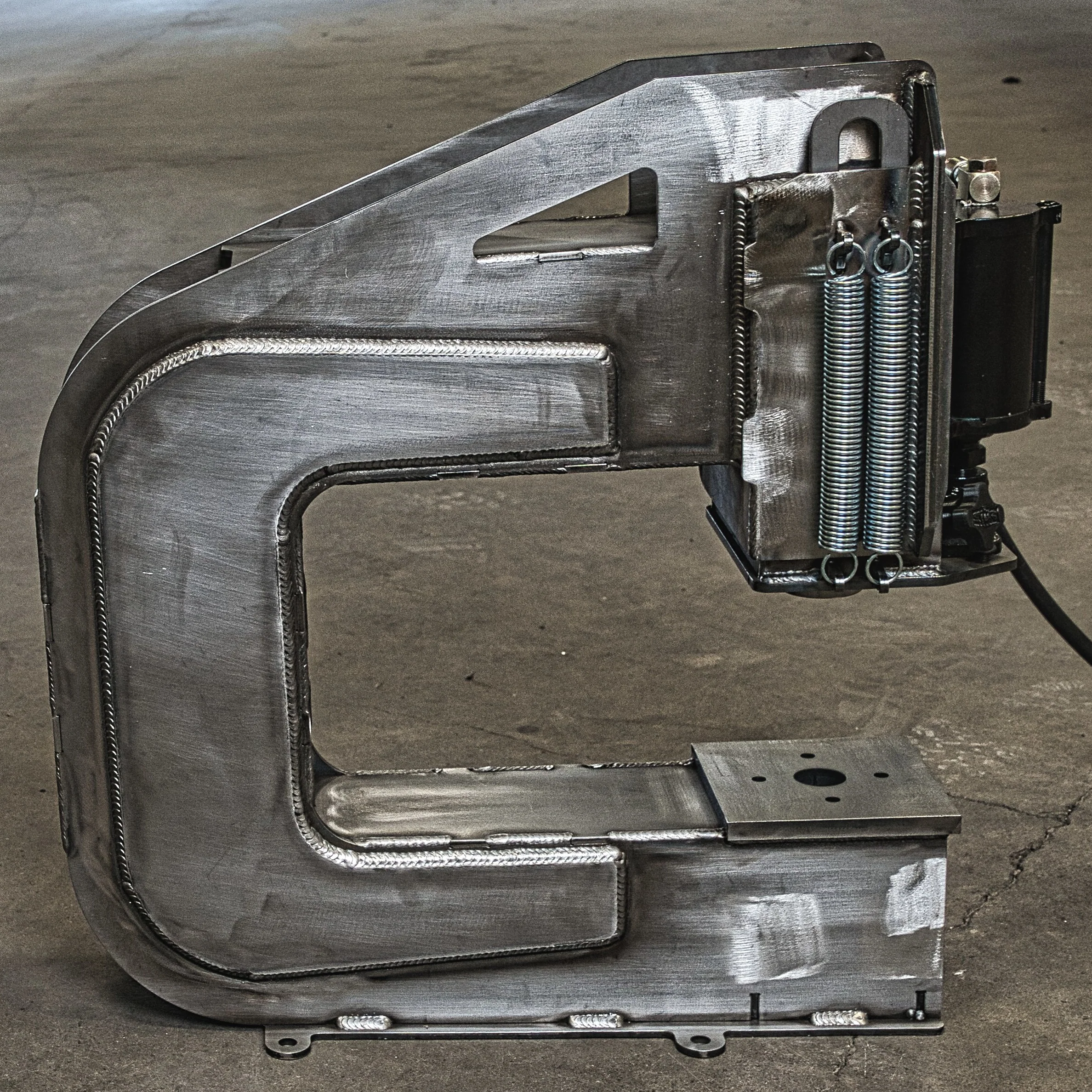

The SWAG Off Road DIY C-Frame Press Kit gives you the raw power and precision of our fully welded press, but in a flat-packed, weld-it-yourself format. Designed from over 115 lbs of laser-cut 1/4" and 1/2" plate steel, this kit is a serious tool for serious fabricators.

With a massive 16" throat depth, a precision-machined arbor, and a compact 22" × 9" × 24" footprint, this press is ideal for punching, stamping, dimpling, pressing, and more. Whether you're outfitting a home shop or a full-time fab business, this press gives you professional-grade performance at a DIY-friendly price.

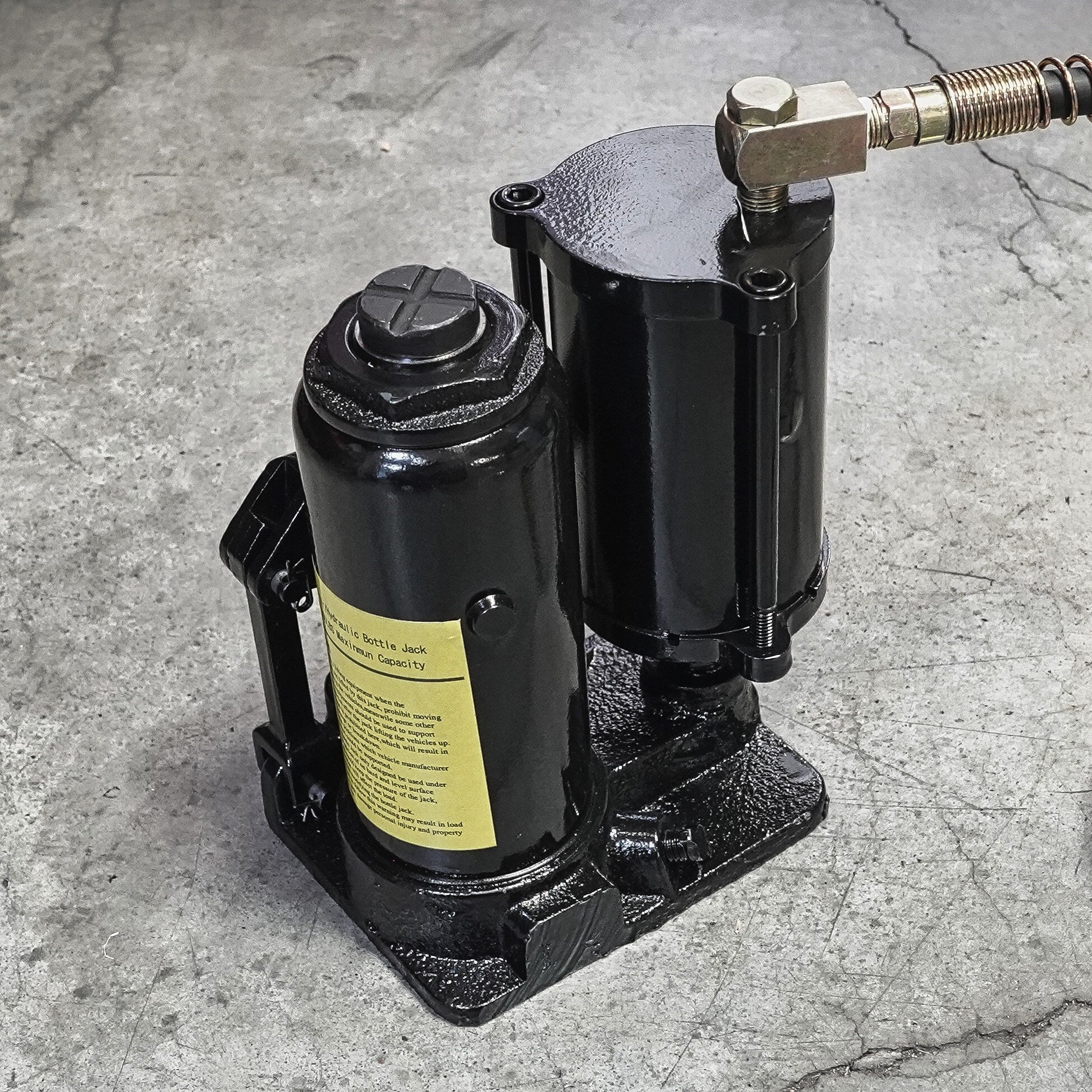

Choose between the kit only (bring your own jack) or the full bundle with our 5-ton air/hydraulic bottle jack, complete with a thumb knob for easy pressure release.

➤ Specifications:

Frame Weight: 115+ lbs of American steel
Overall Dimensions: 22" deep × 9" wide × 24" tall
Throat Depth: 16"
Jack Travel: 5"
Arbor: Precision machined for mounting tooling
Jack Option: Available with or without 5-ton air/hydraulic jack

If you're confident with a welder and ready to build a press that outperforms the imports, this is your kit.

NOTE: If you are ordering the Press without the Jack, your Jack MUST have the pressure release valve on the same side as the air motor. It will be inaccessible if it is on the other side of the jack.
